Cut to Length Line (Cross Cutting Machine)

Description

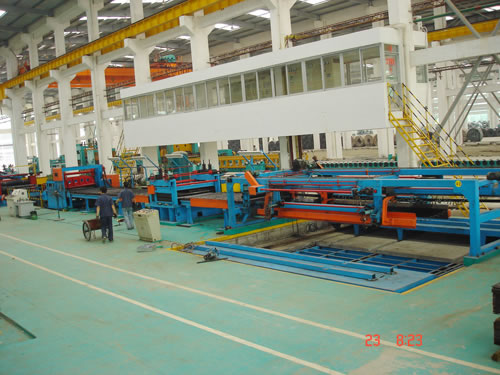

Cut to length production line is made up of coil car, decoiler, entry support device, width adjustor device, leveling machine, gauge table, shearing machine, run out table, pneumatic discharge and stacker device, unloading table, pneumatic system, electrical system with computer PLC program control and hydraulic system. The rolling plate is unfolded and leveled. Then it is sized and sheared into the needed flat plate with a certain length.

Application
Cut to length production line is used for uncoiling, straightening, gauging, and crosscutting to length and stacking work. Cross cutting machine is widely used in cold or hot rolling carbon steel, tinplate, and all the other kinds of metal materials with surface coating.

Features
1. Cross cutting machine is controlled by PLC system or manually as required by the customer. It has PLC controlled single shaft feeder; the information of length, shearing numbers and speed can be input to the HMI (human machine interface).

2. When the needed shearing number is reached the cut to length production line can stop automatically.

3. The production speed can be adjusted. It has a gauge with high precision, and the whole line can work automatically and operate easily thereby producing smooth sheets.

Production Process of Cut to Length Production Line
Loading Coil → Uncoiling → Leveling → Edge Cutting → Looping → Precision Leveling → Sizing and Cutting off → Connecting in Certain Number → Connection

Main Project and Clients on Cut to Length Production Line

No.	Equipment	Client	Remark
1	1550 × 8 mm Horizontal shearing machine	Ningbo Yamei Steel Pipe Company
2	1600 × 2 6 mm Horizontal shearing mill	Shunde Guangzhou
3	1550 × 1.5 6 mm NC high precision vertical and horizontal shearing mill	Guangzhou Contemporary Group
4	10 × 1550 mm Slitting line	Malaysia	X 65
5	4 10 × 1600 mm Slitting line	Guangdong Shunde Shun Steel Flat Plate  Stripping Center
6	4 16 × 2000 mm Slitting line	Wuhan Iron and Steel Group	X 65
7	6 × 600 mm High precision slitting line	Guangdong Shunde Nanda Steel Pipe Co., Ltd
8	1 12.7 × 2000 mm Vertical and horizontal shearing mill	Haicheng Northern Steel Pipe Co., Ltd (China)	X 70
9	3 12.7 × 2000 mm Slitting line	Singapore

Bearing Types of Cut to Length Production Line

No.	Model	Sheet Thickness (mm)	Coil Weight (ton)	Coil Width (mm)	Speed (m/min)	Capacity (kW)	Machinery Floor Area (m2)
1	HJJZ02	0.32	8	10001250	30	70	16 × 25
2	HJJZ03	0.63.2	10	10001500	30	80	16 × 25
3	HJJZ06	26	20	12001550	30	120	16 × 30
4	HJJZ08	48	20	10001600	25	150	16 × 30
5	HJJZ13	412.7	25	10001600	10	180	16 × 40
6	HJJZ16	416	30	10002000	10	230	16 × 40
7	HJJZ20	420	30	10002000	10	260	16 × 50
8	HJJZ25	625.4	30	10002000	10	300	16 × 50

We carry out ISO9001 quality management system in order to ensure the quality of cut to length production line. Hangzhou Roll Forming has more than tenyear’s experience in manufacturing cross cutting machine with a lot of technical information and onsite practical experience. Five functional departments are set in our company with more than 40 designers. 90% of them are senior engineers or the technical staffs with the title above the engineer.
