Section Steel Mill

Description

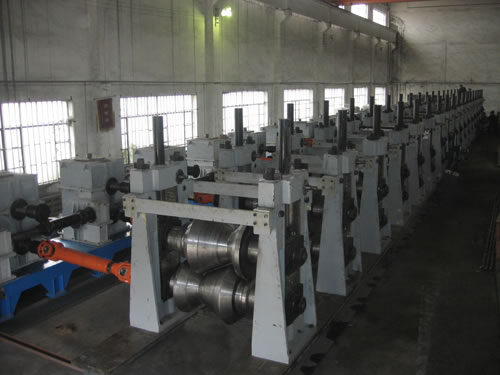

A steel mill or steelworks as an industrial plant is mainly used for manufacturing steels. Section steel production line can produce Usteel, cap shaped steel, Cpurlin and other steels. The rolling plate in certain width is unfolded and leveled. Then, they are sent into the forming machine. The steel plate is bent to the needed form in the cold conditions by using the roller.

Brief Introduction of Steel
Steel is an alloy of iron and carbon. It is produced in a twostage process. First, iron ore is reduced or smelted with coke and limestone in a blast furnace, producing molten iron which is either cast into pig iron or carried to the next stage as molten iron. In the second stage, known as steelmaking, impurities such as sulfur, phosphorus, and excess carbon are removed and alloying elements such as manganese, nickel, chromium and vanadium are added to produce the exact steel required. Steel mills then turn molten steel into blooms, ingots, slabs and sheet through casting, hot rolling and cold rolling.

Application
1. Section steel production line can produce the different sizes of steel sheet piling used in the tunnel construction and foundation construction field.
2. Cold roll forming steel mill is used to roll and form cold and hot rolling steels into all kinds of open coldforming sectional steel like Cshaped steel, Ushaped steel, Lshaped steel and guard fence plates of freeway.

Features
1. Section steel production line has the advantages of excellent cold formability, welding ability, strip flatness and close dimensional tolerance.
2. Cold roll forming steel mill created many innovations in the pile industry such as wider, deeper and multiple thickness sections.

Main Projects and Clients on Section Steel Production Line

Equipment	Clients	Remark
LW1250 × 14 Steel mill	Kuming Steel Pipe Plant of Pangang Group (China)
LW1250 × 12.7 Steel sheet pile mill	Malaysia	Export Project
LW1400 × 14 Steel production line	Tianjin Haosheng Steel Pipe Co., Ltd in China
1400 × 14 mm Heavyduty steel mill	Oulingte (Shanghai) Heavy Cold Rolling Co., Ltd

Process Flows of Cold Roll Forming Steel Mill
Loading Coil → Uncoiling → Leveling → Forming Machine → Sizing and Leveling → Flying Cut off → Finished Products Connection

Available Types of Section Steel Production Line

No.	Model	Specification (mm)	Sheet Thickness (mm)	Coil Weight (ton)	Speed (m/min)	Capacity (kW)	Machinery Floor Space (m2)
1	LWJZ200	50 × 50	13	5	2080	500	18 × 100
2	LWJZ400	100 × 100	28	5	2080	700	18 × 100
3	LWJZ600	150 × 150	210	10	2060	900	21 × 100
4	LWJZ800	200 × 200	2.512.7	15	2040	1000	21 × 130
5	LWJZ1050	250 × 250	314	20	1530	1200	21 × 150
6	LWJZ1250	300 × 300	316	30	1025	1600	21 × 160
7	LWJZ1400	350 × 350	418	30	820	1800	24 × 210
8	LWJZ1600	400 × 400	420	30	820	2000	24 × 240
9	LWJZ2000	500 × 500	422	40	820	2500	24 × 260
10	LWJZ2200	600 × 600	425.4	40	818	3000	32 × 260

Hangzhou Roll Forming is located in the high and new technology industrial development zone in Hangzhou, the heavy industrial base in China. Our company relays on the good science and technology environment and devotes ourselves to provide the section steel production line with clients.
